Boxabl Site Prep & Utilities: The Santa Clarita Owner’s Guide
Boxabl site prep and utility hookups in Santa Clarita typically run $18,000 to $45,000 installed, depending on your lot conditions, trenching distance, and whether you need a new electrical panel or sewer line extension. We stock and install Boxabl-compatible foundation pads, anchor systems, and utility connection kits, and we can usually start site work within two to three weeks of your permit approval.
Most owners discover their site prep wasn’t done right when the Boxabl arrives and the pad isn’t level, the utility stubs are in the wrong spot, or the city inspector flags the electrical service clearance. That’s the worst time to find out. The casita is sitting on a flatbed in your driveway, and the trench is 18 inches short of the panel. We’ve fixed enough of those situations in Canyon Country and Valencia to know exactly what the original prep crew missed.
Key takeaways:
- Boxabl’s folded-steel module needs a dead-level concrete pad with specific anchor bolt placement, not a standard ADU slab.
- Utility stubs (water, sewer, electrical) must be positioned within inches of Boxabl’s connection points, or the module won’t seat.
- Santa Clarita’s expansive clay soil in areas like Saugus and Newhall means the pad needs deeper preparation than coastal lots.
- We quote the full site package in writing before any equipment moves, with no change orders unless you change the scope.
Which Boxabl Models This Applies To
This page applies to the Boxabl Casita, currently the company’s primary production model. The Casita is a 19-foot-by-19-foot folded module that unfolds to roughly 361 square feet of living space. The site prep requirements differ from a conventional ADU because the module arrives on a custom trailer and is crane-lifted onto the foundation, which means your pad has to be within a quarter-inch of level across the entire footprint before the module ever shows up.

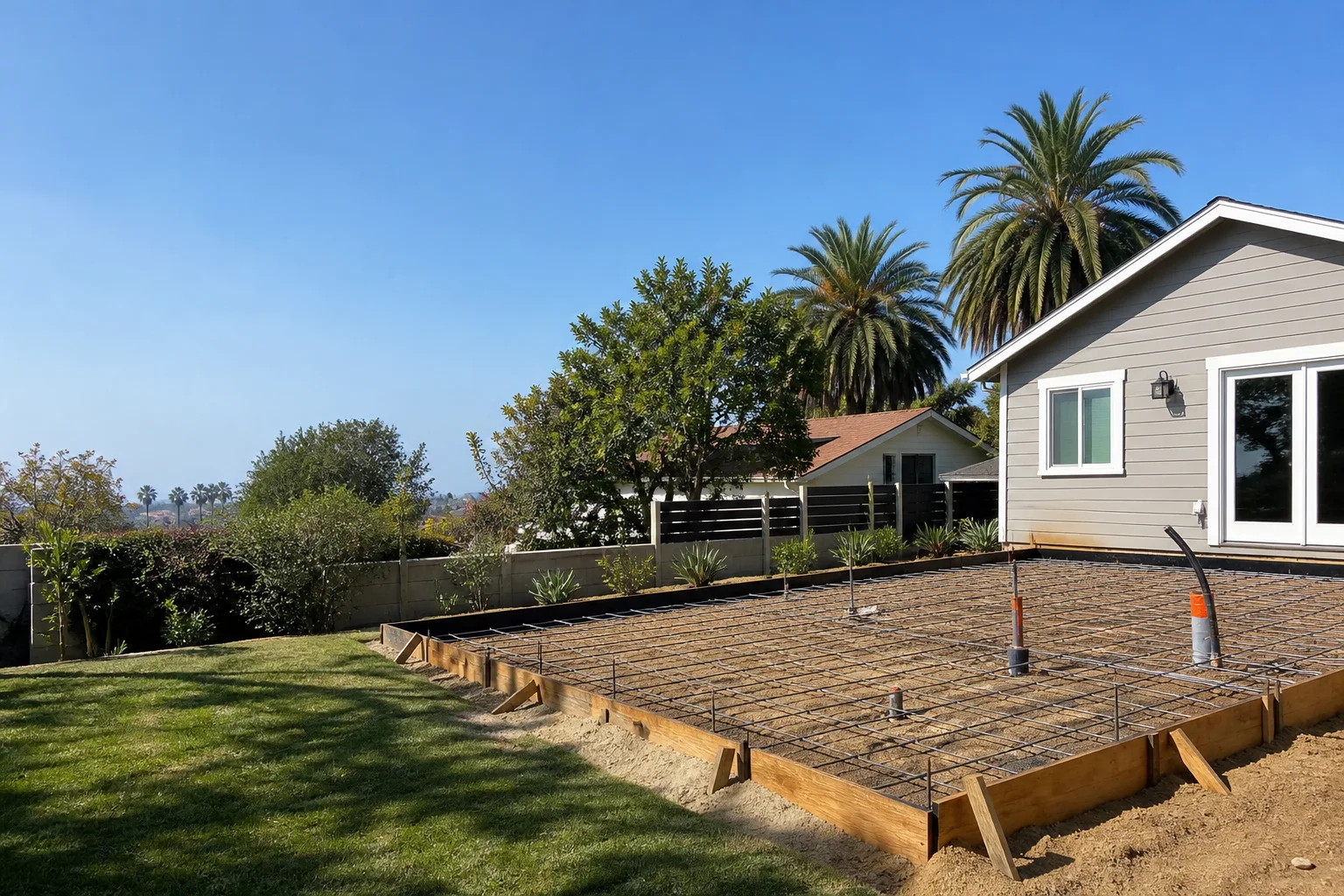

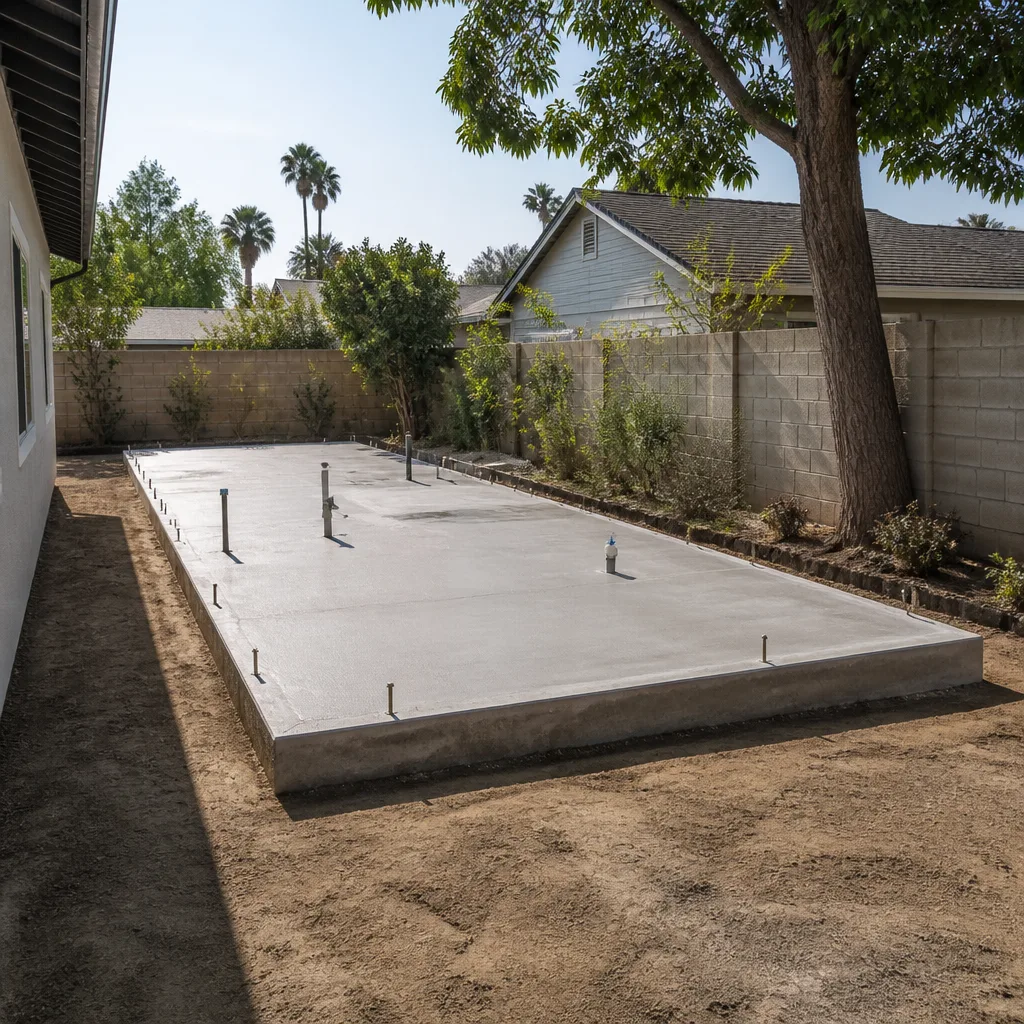

The standard Boxabl foundation spec calls for a 4-inch-thick reinforced concrete slab over compacted aggregate base, with anchor bolts or cast-in-place hold-downs at specific points along the perimeter. Boxabl ships the module with an anchor kit and a utility connection schematic. Where owners get tripped up is the utility rough-in: the water line, sewer stub, and electrical conduit need to exit the slab at coordinates that match the module’s underbelly connection points, not wherever the plumber felt like running them.
For OEM versus aftermarket: the anchor hardware and connection fittings should always be Boxabl’s spec or an exact-match equivalent from a supplier like Simpson Strong-Tie. The concrete, rebar, conduit, and pipe are commodity materials that any qualified crew sources locally. You don’t need Boxabl-branded gravel. But you do need a crew that has actually set a folded module before, because the tolerance stack on a 19-foot module means a half-inch mistake at the curb turns into a two-inch miss at the far corner.
Benson ADU Santa Clarita is an independent contractor, not affiliated with Boxabl. We’ve built with Boxabl, Abodu, Cover, and Dvele products, which means we know which brand’s foundation specs are forgiving and which ones are not. Boxabl’s are not particularly forgiving, and that’s a fact owners should know going in.
Signs Your Boxabl Site Prep & Utilities Is Failing
- Door binds or won’t latch after the module settles. This is almost always a pad that wasn’t leveled correctly or compacted properly before the pour. Over a few months, the slab tilts a fraction of a degree, and the module’s door frame racks just enough to notice. In Santa Clarita’s clay-heavy soil zones, this shows up faster after a wet winter.
- Cracks running through the concrete pad, especially hairline cracks near the anchor points. Either the subgrade wasn’t compacted, the slab wasn’t thick enough at the corners, or the anchors were placed too close to the edge. Hairline cracks at anchor locations mean the hold-down isn’t holding anything anymore.
- Water backing up in the shower or kitchen sink. Boxabl’s sewer connection runs from the module to a stub-out in the slab. If the pipe wasn’t bedded correctly or the slope is wrong, you’ll get slow drains within the first year. A proper sewer lateral in Santa Clarita needs a minimum 2 percent fall, and plenty of rushed crews bury it flat.
- Electrical flicker when the mini-split kicks on. The Casita’s HVAC draws a significant starting load. If the feeder conduit was undersized or the panel connection was done with aluminum wire when the spec called for copper, you’ll see lights dim every time the compressor cycles. This is a fire-watch situation, not a nuisance.
- Anchor bolts visible, rusted, or loose at the slab perimeter. Boxabl’s spec calls for specific hold-down hardware, and if a contractor used generic wedge anchors or skipped the epoxy, the module can shift in high winds. Loose anchors on a folded-steel module are a structural issue you don’t wait on.
Replacement Cost & What’s Included
We write site prep and utility packages for Boxabl owners in Santa Clarita every month. The line items look like this:
| Scope Item | Typical Range in Santa Clarita |
|---|---|
| Pad demolition and removal (existing failed slab) | $2,500 – $5,500 |
| Soil compaction and aggregate base (clay-heavy lots need more) | $1,800 – $4,200 |
| New 4″ reinforced concrete pad, formed and finished | $6,000 – $12,000 |
| Boxabl-spec anchor and hold-down installation | $900 – $2,400 |

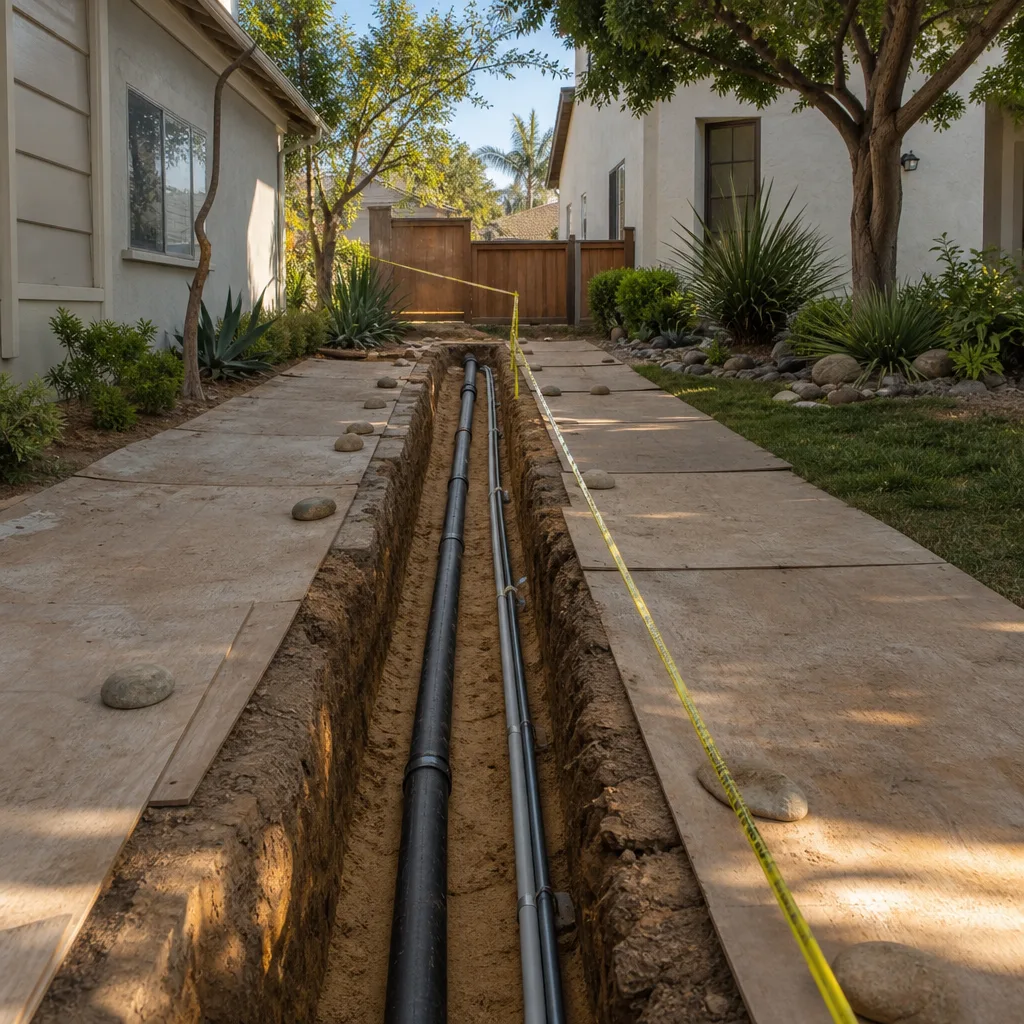

| Utility trenching and rough-in (water, sewer, electrical conduit) | $5,000 – $15,000 |
| Panel upgrade or new subpanel, if needed | $2,500 – $8,000 |
| City inspection coordination and re-permitting | $800 – $2,200 |
Straight talk: the spread on trenching is huge because the distance from the street or the main house to your pad changes everything. If your utility lines run 30 feet, that’s a different project than 120 feet through tree roots and a retaining wall. We give you the exact price in writing after we walk the lot, and that price doesn’t move unless you change the scope. That’s the whole reason Troy Eastman started doing this the way we do it: a written price before work starts, and a guarantee the work is done right for a full year afterward.
Every Boxabl site package from Benson ADU Santa Clarita includes the permit coordination, the concrete work, all utility rough-in to Boxabl’s spec, the anchor installation, and the inspection. If something isn’t right within 365 days, we come back and fix it. That’s the Done Right Promise, and it’s stamped on every project we write.
DIY or Call Us?
Site prep and utilities is not a weekend project, and I’ll tell you the same thing I’d tell a neighbor over a fence: the dangerous part isn’t the concrete, it’s the electrical service and the gas line if your Casita uses gas. Digging near a buried utility line in Santa Clarita can kill you if you hit it wrong, and a subpanel wired by a confident amateur can burn a module down. The trenching and electrical connections are not where you save money. If you want to save money, do the demolition of a failing pad yourself with a rented jackhammer, but leave the live utility connections, the anchor engineering, and the final electrical hookup to a licensed crew.
What you can safely check on your own: walk the slab with a 6-foot level to see if it’s actually out of flat, look for visible anchor hardware, and run water in every fixture to see how fast it drains. That tells you whether you have a problem and how big. If the answer is anything but “everything works perfectly,” call us at (661) 219-7906 and we’ll come out and diagnose it in person. The estimate is free, and you’ll get a written price before any work is scheduled.
FAQs
A properly compacted and poured Boxabl pad in Santa Clarita should last 40 to 50 years or longer, which is the standard reinforced-concrete service life for a residential slab in this climate. The weak links are usually the utility connections and anchor hardware, which should be inspected every five years and replaced or remediated as needed. Call (661) 219-7906 if you want us to take a look at yours.
A pad with minor surface cracks but no structural movement can sometimes be repaired with epoxy injection and slab leveling, but a pad that has shifted enough to bind the module’s doors or loosen anchors needs full removal and repour. In our experience in Santa Clarita, about 70% of Boxabl pads with anchor-point cracking end up needing replacement because the hold-down integrity is already compromised. We’ll tell you which one you have, for free, after a site visit.
Most full site prep packages in Santa Clarita run two to four weeks after permits are approved, with the final utility connections happening on install day when the module is set. Permit approval time depends on the city, not on us, and Troy Eastman has shepherded enough Boxabl, Abodu, and Cover permits through local building departments to know how to file them correctly the first time.
Yes, we keep Boxabl-spec anchor hardware, hold-down components, and connection fittings stocked for common Casita configurations, and we can source exact-match OEM parts for unusual or early-production modules within a few days. If you’re not sure what version your module needs, bring us the serial number plate photo and we’ll match it. Call (661) 219-7906 for pricing and availability.
Price it in writing, build it right, no surprises – that’s the whole job. If your Boxabl’s pad is cracked, your utilities are fighting you, or your module just doesn’t sit right in Santa Clarita, call us at (661) 219-7906 for a free estimate. We’ll walk the site, hand you a written price, and if we do the work, you’ll get the 365-Day Done Right Promise on everything we touch.
Written by Troy Eastman, Owner & Lead Builder, Benson ADU Santa Clarita at Benson ADU Santa Clarita, serving Santa Clarita and nearby areas.
